Chief PAC722

Installation Manual	Technical Drawing

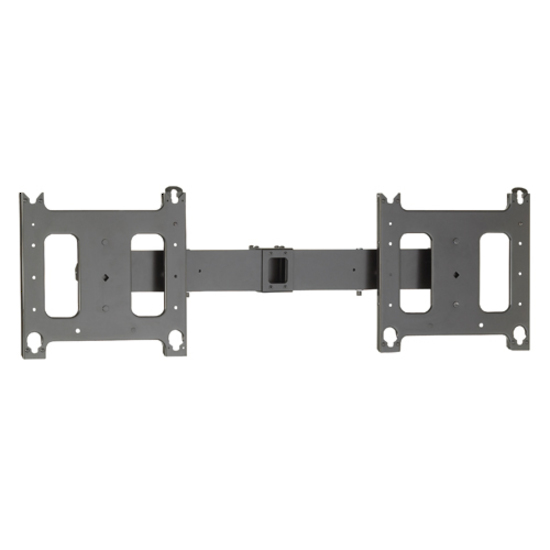

The PAC722 adds support for two displays side-by-side to carts and floor stands.

Note: If you have already ordered a universal cart or stand, you only need to order one interface bracket since these stands come with one universal interface bracket. If you have not ordered a universal cart or stand, you will need two interface brackets (one for each sceen).

Features:

• Supports two 39.2-58.8" (99.6 - 149.4 cm) wide displays (must be same size).

Product Specifications:

• Color: Black
• Notes: Weight capacity is per TV
• Overall Dimensions (H x W x D): 14.0" x 53.2" x 3.9" (356 x 1351 x 99mm)
• Shipping Weight: 17 kg
• Tilt: + 15° , - 15°
• TV Width Range: 39.2 - 58.8" (996 - 1494mm)
• Weight Capacity: 75 lbs (34kg)
